In the modern food, pharmaceutical, and packagingindustries, maintaining product safety and quality is a fundamental
requirement. Contaminants can enter production lines at various stages, from
raw material harvesting to final packaging. For decades, manufacturers have
relied on industrial inspection systems to catch these foreign objects before
they reach consumers.
Two primarytechnologies dominate this field: Metal Detection and X-ray Inspection. While
both technologies serve the overarching goal of quality control, they operate
on completely different physical principles. Choosing the wrong system can lead
to costly false rejects, missed contaminants, and potential product recalls.
This guideprovides a comprehensive, technical analysis of both methods,detailing exactly when you should transition from standard metal detection to
advanced X-ray inspection.
Understandingthe Core Technologies
To
make aninformed decision, it is essential to understand how each system identifies
contaminants.
INSPECTION METHODS
METAL DETECTION
X-RAY INSPECTION
Uses electromagnetic fields to detect conductive or magnetic foreign objects.
Uses density differentials and high-energy waves to create a 2D density map of the product.
How MetalDetectors Work
Industrialm
etal detectors utilize an electromagnetic transmitter coil to create a
balanced magnetic field. When a product passes through the detector's aperture:
· Anymetallic contaminant (ferrous, non-ferrous, or stainless steel) disturbs the
electromagnetic field.
· Thisdisturbance is picked up by receiver coils, which convert the physical change
into an electrical signal.
· If thesignal exceeds a pre-set threshold, the system triggers a rejection mechanism.
Becausethis technology relies on electromagnetism, the physical state and conductivity
of the product itself can influence the signal—a phenomenon known as the
product effect.
How X-rayInspection Systems Work
IndustrialX-ray s
ystems function by measuring density variations. The system consists of
an X-ray generator that shoots a controlled, low-energy beam of X-rays through
the product onto an array of highly sensitive diode sensors.
· As theX-ray beam passes through the product, some of the energy is absorbed.
· Denseobjects absorb more X-rays than the surrounding product, casting a darker
shadow on the sensor array.
· Advancedsoftware algorithms, such as those built on modern artificial intelligence (AI)
platforms, analyze the resulting grayscale image in real-time to locate and
identify foreign objects.
1. Type ofContaminants to Detect (Beyond Metals)
The mostfundamental re
ason to choose X-ray inspection over metal detection is the
variety of foreign materials you need to detect.
· Metal Detectors are strictly limited to detecting metals.They cannot identify glass, stone, bone, or plastics, regardless of how large
the foreign object is.
· X-ray Inspection Systems detect any material that has a higher densitythan the product being inspected.
Thiscapability is essential when your raw materials or production processes
introduce non-metallic hazards.

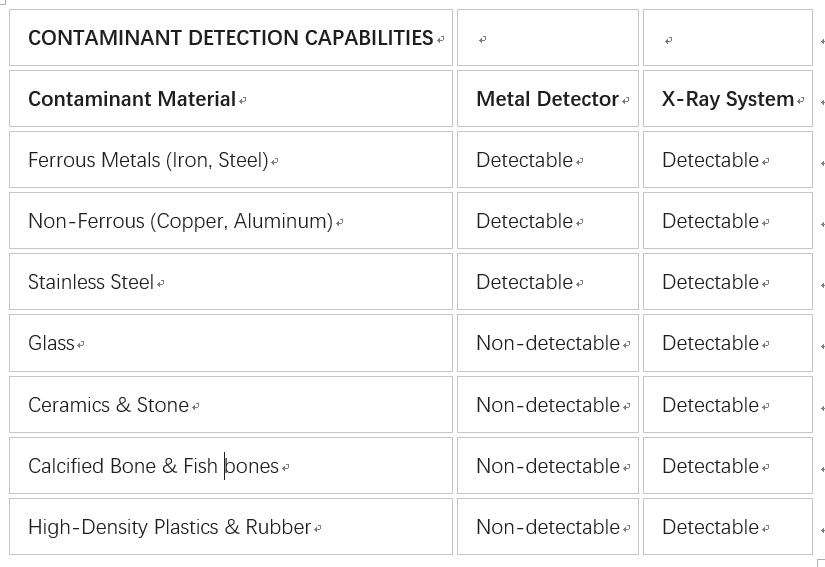

CONTAMINANT DETECTION CAPABILITIES
Industry Examples:
· Seafood Processing: Standard metal detectors cannot find fishbones. Specialized X-ray systems with fishbone enhancement algorithms are
designed to pinpoint tiny, low-density calcified bones in fish fillets,
protecting consumers and preserving brand trust.
· Canned and Jarred Foods: During the filling process of jars,glass-in-glass contamination is a constant risk. Vertical beam X-ray systems
are required to inspect bottom and side profiles of containers where glass
shards typically settle.
2.Overcoming the "Product Effect"
One of theprimary challenges in metal detection is the producteffect. Some products are naturally conductive. Foods with high moisture, salt,
or acid content—such as fresh meat, cheese, pickles, and wet dough—mimic the
electromagnetic signature of metal. When these items pass through a metal
detector, they create a strong signal that can trigger false rejections.
To preventfalse alarms, manufacturers must lower the sensitivity of the metal detector,
which unfortunately increases the risk of actual metal contaminants slipping
through.
Why X-rayis Immune to Product Effect
X-rayinspection does not rely on electrical conductivity or magnetic properties. It
only measures physical density.
· Whether aproduct is frozen, hot, wet, salty, or dry, its X-ray density remains virtually
identical.
· Thisimmunity allows X-ray systems to maintain consistently high sensitivity levels even when checkingcomplex products like block cheeses, marinated meats, and ready-to-eat meals.
3. Dealingwith Aluminum and Metallized Packaging
Thepackaging material of your finished product plays a decisive role in equipment
selection.
The MetalDetector Limitation
If yourproduct is packaged in aluminum foil pouches, metallized film/flow-wrap, or
metal cans/jars with metal lids, a standard metal detector cannot be placed at
the end of the line. The packaging itself will trigger the sensor. While
specialized "ferrous-in-foil" detectors exist, they are highly
limited and cannot detect non-ferrous metals like copper or stainless steel
within the foil.
The X-raySolution
X-rayseasily penetrate thin layers of aluminum foil, metallized films, and even thick
steel cans. Because the packaging material is thin and uniform, it creates a
very light signature on the X-ray sensor, allowing the software to easily
distinguish dense contaminants (like glass, stone, or stainless steel) inside
the package.
If yourquality control protocol requires end-of-line inspection (inspecting the final,
sealed package to ensure no contamination occurred during the packaging phase),
and your packaging contains metal, X-ray inspection is the technically viable
option.
4. ProductCompleteness and Quality Inspections
Unlikemetal detectors, which are single-purpose sensors, modern X-ray systems double
as multi-functional visual inspection tools. Because they capture a 2D density
image of every product, they can perform several quality checks simultaneously.
Mass andWeight Estimation
X-raysystems can estimate the overall weight of a package by calculating the total
density of the scanned image. If a package is missing components, the system
can flag and reject it.
ComponentIntegrity and Completeness
Forcomplex packaged goods, an X-ray system can verify that all parts are present:
· Checkingif a compartment in a ready-meal tray is empty.
· Ensuringthe correct count of biscuits, chocolates, or pills is present in a blister
pack.
· Verifyingthat a prize or spoon is included in a cereal box.
StructuralIntegrity and Shape Identification
X-raysoftware can identify broken, deformed, or cracked products inside sealed
packaging. For instance, it can detect broken cookies inside a non-transparent
wrapper or cracked pills inside a medical bottle.

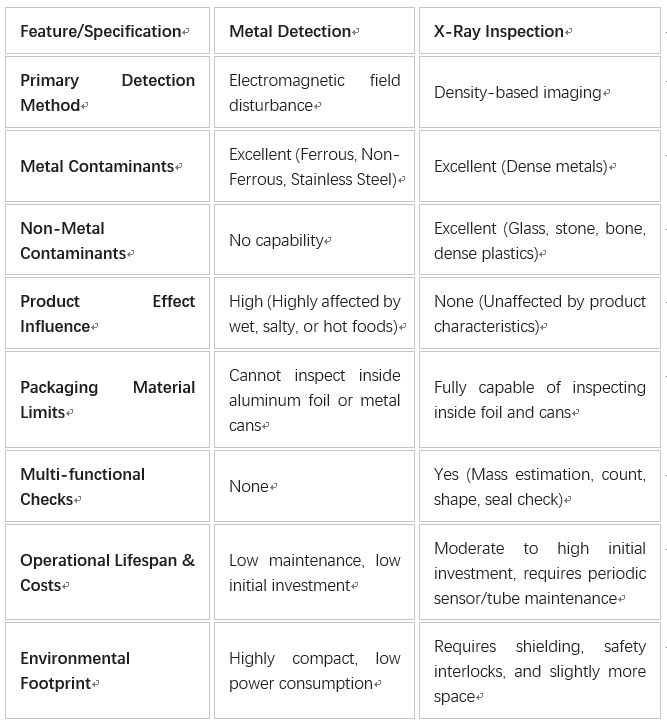

ComparingMetal Detection vs. X-ray Inspection
Whendeciding which technology to deploy, conduct a systematic evaluation of your
specific production environment based on the following three criteria:
1.Critical Control Points (HACCP / HARPC)
Analyzeyour Hazard Analysis Critical Control Point (HACCP) plan. Where is the greatest
risk of contamination?
·
If yourraw materials are harvested from the ground (e.g., potatoes, vegetables,
grains) where stones or glass can be mixed in, an X-ray system placed early in
the process is highly recommended to protect downstream processing machinery.
· If yourprimary risk is machinery wear-and-tear (e.g., metal shavings from blades or
mixers), a metal detector may be sufficient, provided the packaging is
non-metallic.
2.Sensitivity Requirements
What isthe minimum size of the contaminant you must detect to comply with retailer
standards or regulatory bodies (e.g., FDA, BRCGS, IFS)?
· X-raysystems paired with artificial intelligence (AI) algorithms can often detect
metal down to $0.2\text{ mm}$ to $0.3\text{ mm}$ and glass down to $1.0\text{ mm}$ or less under stable testingconditions, depending on the product density.
· Ensureyou perform testing with actual product samples, as product density variations
will directly influence the minimum detectable contaminant size.
3. TotalCost of Ownership (TCO) vs. Risk Management
Whilemetal detectors require lower initial capital expenditure and have minimal
ongoing maintenance costs, they do not protect against non-metallic
contaminants or product integrity issues. An X-ray system represents a higher
upfront investment but offers comprehensive protection against recalls, brand
damage, and expensive litigation involving non-metallic foreign objects.
RadiationSafety: Myth vs. Fact
A commonconcern when introducing X-ray inspection systems to a production facility is
safety—both for the consumers eating the food and for the operators running the
machinery.
Fact: The X-ray energy used in food andpharmaceutical inspection is extremely low.
FoodSafety
The WorldHealth Organization (WHO) and the Food and Drug Administration (FDA) have
confirmed that food inspected by industrial X-ray systems remains safe to
consume. The radiation dose received during inspection is thousands of times
lower than the levels used in food irradiation (which is used to sterilize
food). The nutritional value, taste, and texture of the food are unaffected.
OperatorSafety
Modernindustrial X-ray inspection equipment is built with heavy internal shielding,
stainless steel cabinets, and safety interlock monitoring.
· Leadingmanufacturers design systems to exceed international radiation safety
standards, ensuring that stray radiation leakage is virtually zero.
· Standardsafety interlocks instantly shut down the X-ray generator the moment a protective
cabinet door or access panel is opened, ensuring operator safety.
KeyTechnological Advancements to Look For
If youdecide that X-ray inspection is the correct choice for your facility, it is
important to look for modern system architectures that maximize uptime, ease of
use, and long-term reliability.
AI-PoweredDetection Algorithms
Oldergeneration X-ray systems relied on simple threshold-based image analysis, which
struggled with complex, non-uniform products. Modern equipment utilizes AI
detection algorithms that learn the "normal" shape and density
variations of a product. This significantly reduces false reject rates whileidentifying smaller, irregular foreign objects.
Server-LevelOperating Systems
Industrialenvironments can experience sudden power drops, fluctuations, or network
issues. X-ray systems running on server-level Linux systems are highly resilient against typical computer viruses andprevent data loss during abnormal power failures.
SanitaryDesign and Ease of Cleaning
Foodsafety requires rigorous sanitization. Ensure the machine's conveying system
can be quickly disassembled or split from the main housing without complex
tools. An IP-rated design (such as IP66 for conveyors and IP54 for main
enclosures) allows for direct washing and cleaning, keeping your production
line hygienic.
Conclusion
The choicebetween X-ray inspection and metal detection is not about which technology is
superior, but which is correct for your application.
· Choose Metal Detection if you are inspecting dry, non-conductiveproducts in non-metallic packaging, and your only safety concern is metallic
foreign bodies.
· Choose X-ray Inspection if you need to detect non-metallic materialslike glass, stone, or bone, if your product is packaged in foil or cans, if you
suffer from severe product effect issues, or if you want to perform automated
quality and completeness checks simultaneously.
Investingin the correct system protects your customers, secures your supply chain, and
safeguards your brand's reputation.
