The hawthorn industry is currently undergoing a radical transformation.What was once a humble roadside snack in the form of sugar-coated haws has evolved into a multi-billion dollar globalmarket. As consumer awareness regarding functional foods and preventative
health grows, hawthorn—rich in flavonoids, organic acids, and vitamin C—has
moved from the "snack" category into the "superfood" and
"pharmaceutical" realms.
However, with great market potential comes great regulatory andoperational responsibility. As the supply chain stretches from rural orchards
to high-tech cleanroom laboratories, the complexity of quality control (QC)
grows exponentially. This first installment of our three-part series explores
the critical challenges of Foreign Object Detection and how VIXDETECT’scutting-edge solutions are setting new benchmarks for the industry.
1. The Hawthorn Evolution: From Orchards to Laboratories
To understand the inspection challenges, one must first understand thebreadth of the modern hawthorn catalog. The industry is no longer monolithic;
it is bifurcated into two distinct production streams, each with its own set of
contamination risks.
A. Primary Processed Products (High Volume)
These products focus on preserving the flavor and fiber of the fruit.Because they often involve bulk processing of raw fruit, the risk of
"natural" contaminants (stones, soil, seeds) is high.
Traditional Confections: Hawthorn cakes, strips, fruit leathers, and gummies.
Beverages: Fermented hawthorn wines, clear juices, and the surging "sparkling hawthorn water" segment.
Industrial Ingredients: Hawthorn pulps and pastes used as bases for other food industries.
B. Functional & High-Value Products (PrecisionManufacturing)
This segment treats hawthorn as a chemical precursor or a pharmaceuticalactive ingredient. Here, the standards move from "Food Grade" to
"Pharma Grade."
Nutraceuticals: Probiotic-infused hawthorn bites and heart-health capsules.
Traditional Chinese Medicine (TCM): Da Shan Zha Wan (Hawthorn Pills) and concentrated extracts.
Advanced Formats: Effervescent tablets, sublingual lozenges, and essential oils extracted via CO2 technology.
2. The Anatomy of Contamination: Where Risks Hide
Foreign object contamination is rarely the result of a single failure; itis a cumulative risk that begins at the soil level and ends at the sealing jaw
of a packaging machine.
I. The "Field-to-Factory" Gap (Raw MaterialPre-treatment)
Hawthorns are harvested in bulk. Despite rigorous washing, the irregular,pitted surface of the fruit can trap calcified soil, small stones, or evenglass fragments from the transport environment. If these enter the grinder,they don't just ruin the batch—they can shatter and create thousands of
micro-contaminants.
II. The Mechanical Toll (Pitting, Slicing, and Grinding)
The most difficult "foreign" object to detect in hawthornprocessing is actually part of the hawthorn itself: the seed (pit).Residual pits or fragments are considered a major quality defect in
"painless" snacks and can be a choking hazard. Furthermore, the high
acidity of hawthorn can accelerate the wear and tear of stainless-steel blades,
leading to metal shavings or broken sieve wires entering theproduct stream.
III. The Human and Maintenance Factor
In semi-automated lines, human interaction introduces risks such as hair,fingernails, or fragments of blue nitrile gloves. In fully automated lines,the vibration of high-speed machinery can cause loose bolts, washers, orplastic spacers to fall into open conveyors or mixing vats.
IV. Packaging Vulnerabilities
Modern hawthorn products use diverse packaging: aluminum foil laminatesfor freshness, glass bottles for premium juices, and plastic tubes for jelly.
Each of these materials introduces its own challenge. For instance, traditional
metal detectors fail when the product is already wrapped in foil—this is where
X-ray technology becomes non-negotiable.
3. The VIXDETECT Solution: Intelligence Behind the Beam
Standard inspection equipment often struggles with hawthorn due to itsvarying density and moisture content. VIXDETECT has engineered a suite of
solutions specifically tuned to the "organic signature" of hawthorn
products.
AI-Powered Deep Learning: Beyond Thresholds
Traditional X-ray systems work on simple density thresholds. If an objectis denser than the fruit, it triggers an alarm. However, hawthorn pits have a
density very similar to the fruit flesh, leading to high false-reject rates.
The VIXDETECT Advantage: Our systemsutilize Convolutional Neural Networks (CNN). By "training" themachine on thousands of images of hawthorn, the AI learns to distinguish
between a harmless clump of fiber and a dangerous shard of glass or a residual
pit fragment, even in cluttered images.

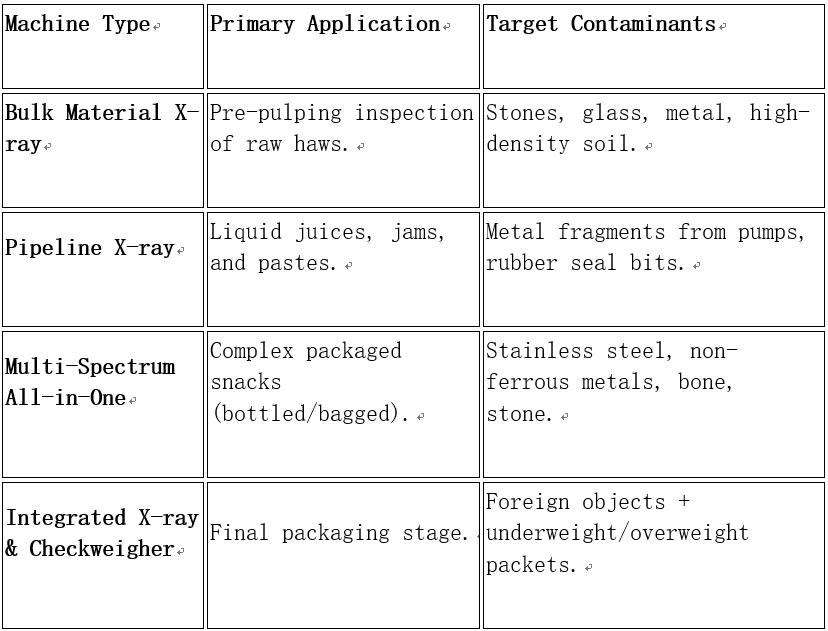

Comprehensive Hardware Lineup
4. Case Study: Redefining Standards at Shandong Jinye
Shandong Jinye Agriculture Food Co., Ltd. is a titan in the hawthorn sector, particularly known for their"clean label" (additive-free) lollipops. Their challenge was twofold:
High Speed: Their lines move at speeds that cause motion blur in standard detectors.
Product Shape: The spherical nature of lollipops creates varying thicknesses, which often confuses standard X-ray software.
The Solution:
Jinye integrated the VIXDETECT Mobile X-ray Inspection System. Thisunit was chosen for its compact footprint and its ability to be wheeled between
the lollipop molding line and the jelly bar extrusion line.
The Results:
Sub-millimeter Detection: The system successfully identified 0.3mm metal wires hidden inside the dense hawthorn paste.
Zero-Production Lag: The high-speed processing GPU allowed the line to remain at 100% capacity without "false stops."
Brand Protection: By ensuring every "additive-free" treat was also "contaminant-free,"
Jinye solidified its position as a premium, safe brand for children.
5. Conclusion: Quality as the Foundation of the GoldenAge
As the hawthornindustry expands into international markets and pharmaceutical applications,
the "visual check" is no longer sufficient. Global retailers and
health authorities demand documented, automated, and infallible safety
protocols.
Foreign objectdetection is the first line of defense. By partnering with VIXDETECT,
manufacturers are not just buying a machine; they are investing in a
comprehensive safety ecosystem that utilizes AI, precision hardware, anddeep industry expertise.
Stay tuned for PartII: Product Defect Inspection, where we will discuss how to identifyinternal rot, color inconsistencies, and shape irregularities in hawthorn
processing.
VIXDETECT:Empowering the Future of Food Safety. For more information on ourhawthorn industry solutions, contact our technical team today.
